A-138s Mini Stereo Mixer

click to enlarge click to enlarge

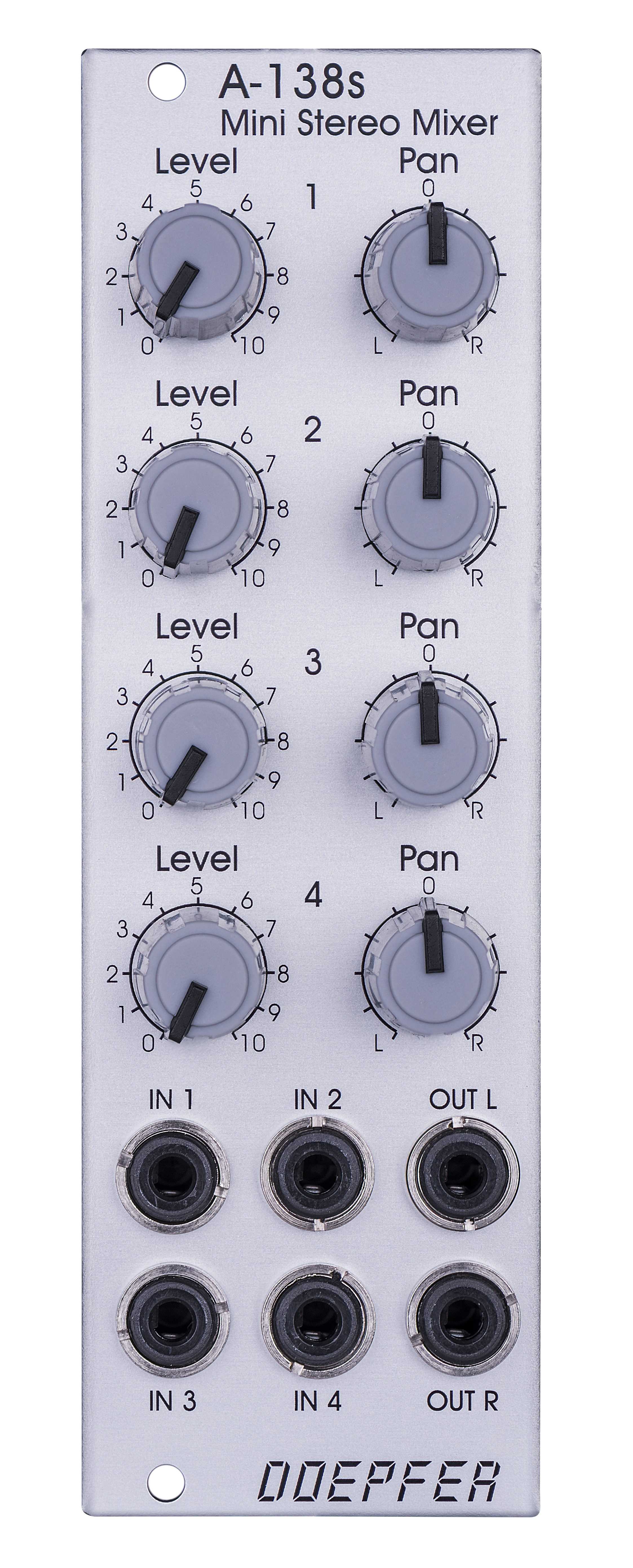

Standard Edition

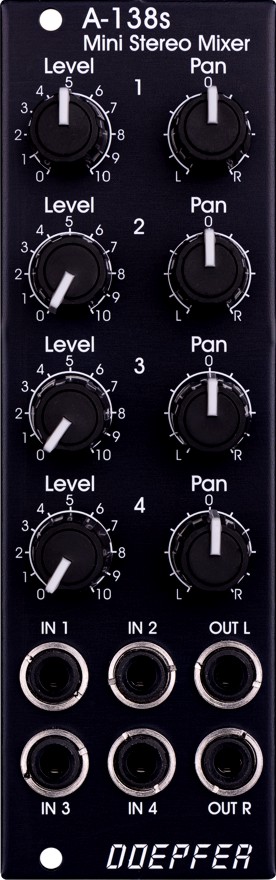

Vintage Edition



A-138s ist ein einfaches aber effektives 4-in-2 Mixmodul. Es verfügt über vier Eingänge. Jeder Eingang ist mit einem Abschwächer (Level) und einem Panning-Regler (Pan) ausgestattet. Der Panning-Regler dient dazu das Signal auf den rechten und linken Ausgang zu verteilen. In der Mittelstellung des betreffenden Pan-Reglers wird das Signal mit gleichem Pegel auf linken und rechten Ausgang verteilt. Bei Linksanschlag erscheint das Signal nur auf dem linken Ausgang, bei Rechtsanschlag nur auf dem rechten Ausgang,

Neben der Anwendung als kleiner Stereo-Mixer ist das Modul auch dazu geeignet variable Parallel-Routings und Feedbacks zu realisieren. Beispielsweise kann das Modul dazu verwendet werden mehrere Audio-Signale auf 2 verschiedene Filter zu routen und auch die Ausgangssignale der Filter auf die Eingänge zurückzuführen.

Das Modul kann auch als "kleiner Bruder" des Matrix-Mixers A-138m angesehen werden.

Ein- uns Ausgänge sind gleichspannungsgekoppelt und ist daher auch für Steuersignale geeignet.

Technische Hinweise:
Die Verstärkung bei Level-Regler auf Rechtsanschlag und Pan-Regler in Mittelstellung beträgt ca. 1,6 für beide Ausgänge.
Die Verstärkung bei Level-Regler auf Rechtsanschlag und Pan-Regler auf Rechtsanschlag beträgt ca. 1,9 für den rechten Ausgang und Null für den linken Ausgang.
Die Verstärkung bei Level-Regler auf Rechtsanschlag und Pan-Regler auf Linksanschlag beträgt ca. 1,9 für den linken Ausgang und Null für den rechten Ausgang.


A-138s is a simple but useful 4-in-2 mixing tool. It has four inputs available. Each input is equipped with an attenuator (Level) and a panning control (Pan) which is used to distribute the signal to the left and right output. In the center position of the Pan control the corresponding signal is distributed with equal levels to the left and right output (OUT L and OUT R). In fully CCW position the signal appears only at the left output (OUT L), fully CW only at the right output (OUT R).

Beyond stereo mixing it is equally suited to create variable parallel routings. For example: Any of the four inputs may be routed in variable intensity to feed two filters.

You may regard the A-138s as a smaller version of the A-138m Matrix Mixer.

Inputs and outputs are DC coupled, i.e. the module can be used for the mixing of control signals too.

Technical notes:
The amplification with Level fully CW and Pan at center is about 1.6 for both outputs.
The amplification with Level fully CW and Pan fully CW is about 1.9 for the right output and zero for the left output.
The amplification with Level fully CW and Pan fully CCW is about 1.9 for the left output and zero for the right output.


Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 30 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +10 mA (+12V) / - 10 mA (-12V)

Standard Version : Euro 90.00
Vintage Edition : Euro 100.00
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.
