A-138n Narrow Mixer
Slim Line Series



click to enlarge

click to enlarge

Standard Edition

Vintage Edition

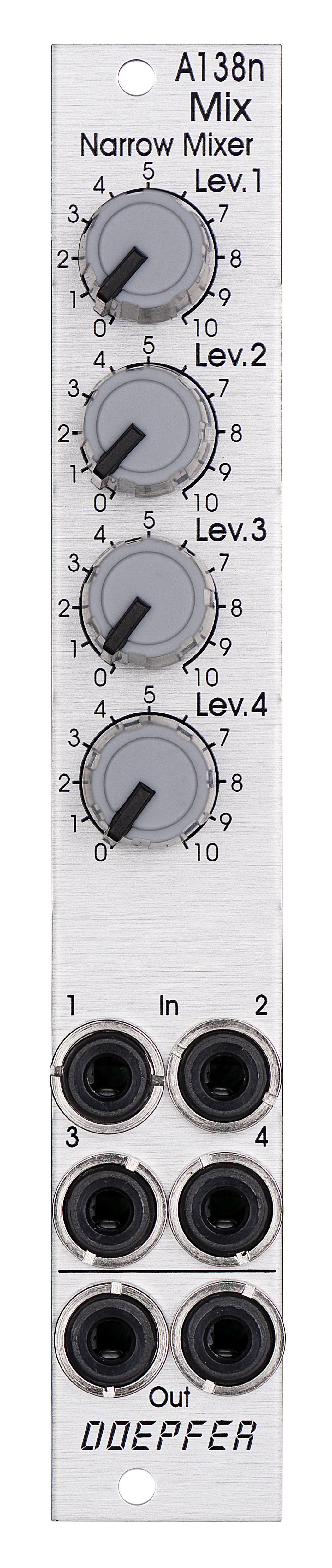

Das Modul A-138n ist ein einfacher vierkanaliger Mischer (engl. mixer), der sowohl zum Mischen von Steuerspannungen als zum Mischen von Audiosignalen verwendet werden kann. Für jeden der vier Eingänge steht ein eigener Abschwächer mit linearer Kennlinie zur Verfügung. Die Verstärkung liegt im Bereich 0...1. Der Ausgang ist zweifach ausgeführt (Mini-Multiple).

Das Modul ist die schmale Version des A-138a und verfügt über annähernd identische Funktionen. Die Bedienelemente sind jedoch enger angeordnet und es kommen kleinere, gummierte Drehknöpfe zum Einsatz. Dafür ist die Frontplatte mit 4TE nur halb so breit wie die des Moduls A-138a. Es ist daher in erster Linie für Anwendungen gedacht, bei denen wenig Platz zur Verfügung steht. Der wesentliche funktionelle Unterschied zum A-138a besteht darin, dass der Ausgang nicht mit einem Abschwächer ausgestattet ist. Dafür steht das Ausgangssignal an zwei Buchsen zur Verfügung (Mini-Multiple). Außerdem ist Eingang 1 nicht mit der Gleichspannungsoffset-Option ausgestattet.


Module A-138n is a simple four channel mixer, which can be used with either control voltages or audio signals. Each of the four inputs has an attenuator with a linear response curve available. The amplification range is 0....1.The output is twice available (two sockets, hard-wired like a multiple).

The module is the slim version of module A-138a and offers nearly the same features. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is half the width of the A-138a. The module is primarily planned for applications where only limited space is available. The main functional difference compared to the A-138a is the missing attenuator for the (dual) output. And input #1 does not feature the DC offset option.


Breite/Width: 4 TE / 4HP / 20.0 mm
Tiefe/Depth: 30 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current:
+10mA (+12V) / -10mA (-12V)

Preise / Prices:
Standard Version : Euro 70.00
Vintage Edition : Euro 80.00
