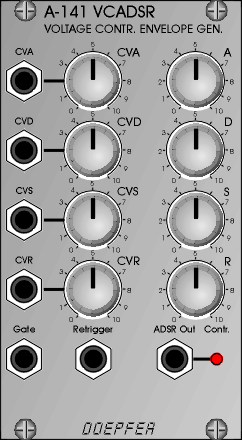

A-141 Voltage Controlled
Envelope Generator VCADSR |
|||
|
Das Modul A-141 ist die spannungsgesteuerte Variante
eines Hüllkurvengenerator vom ADSR-Typ (engl. voltage-controlled envelope
generator), gewissermaßen die spannungsgesteuerte Version des A-140. Sobald am Gate-Eingang des VCADSR's ein Gate-Signal anliegt, wird dieser
getriggert und generiert einen manuell und per Steuerspannungen einstellbaren Steuerspannungsverlauf
(engl. envelope). Die Hüllkurve wird beispielsweise zur Modulation von VCOs,
VCFs, VCAs oder anderen spannungsgesteuerten Parametern (z.B. Phasing A-125,
Frequency-Shifting A-126, BBD-Delay A-188-1/A-188-2,
Waveshaping A-116/A-137)
verwendet. Der verfügbare Zeitbereich für A, D und R liegt bei ca. 3 ms ... 20 s. Durch Ändern eines Kondensators kann auf Wunsch auch ein anderer Zeitbereich zur Verfügung gestellt werden, z.B. 300us... 2s. Zur weitergehenden Information steht die Bedienungsanleitung als pdf-Datei zur Verfügung: A141_Anl.pdf nicht mehr lieferbar, Ersatztyp: A-141-2 |
||
|
|||
|

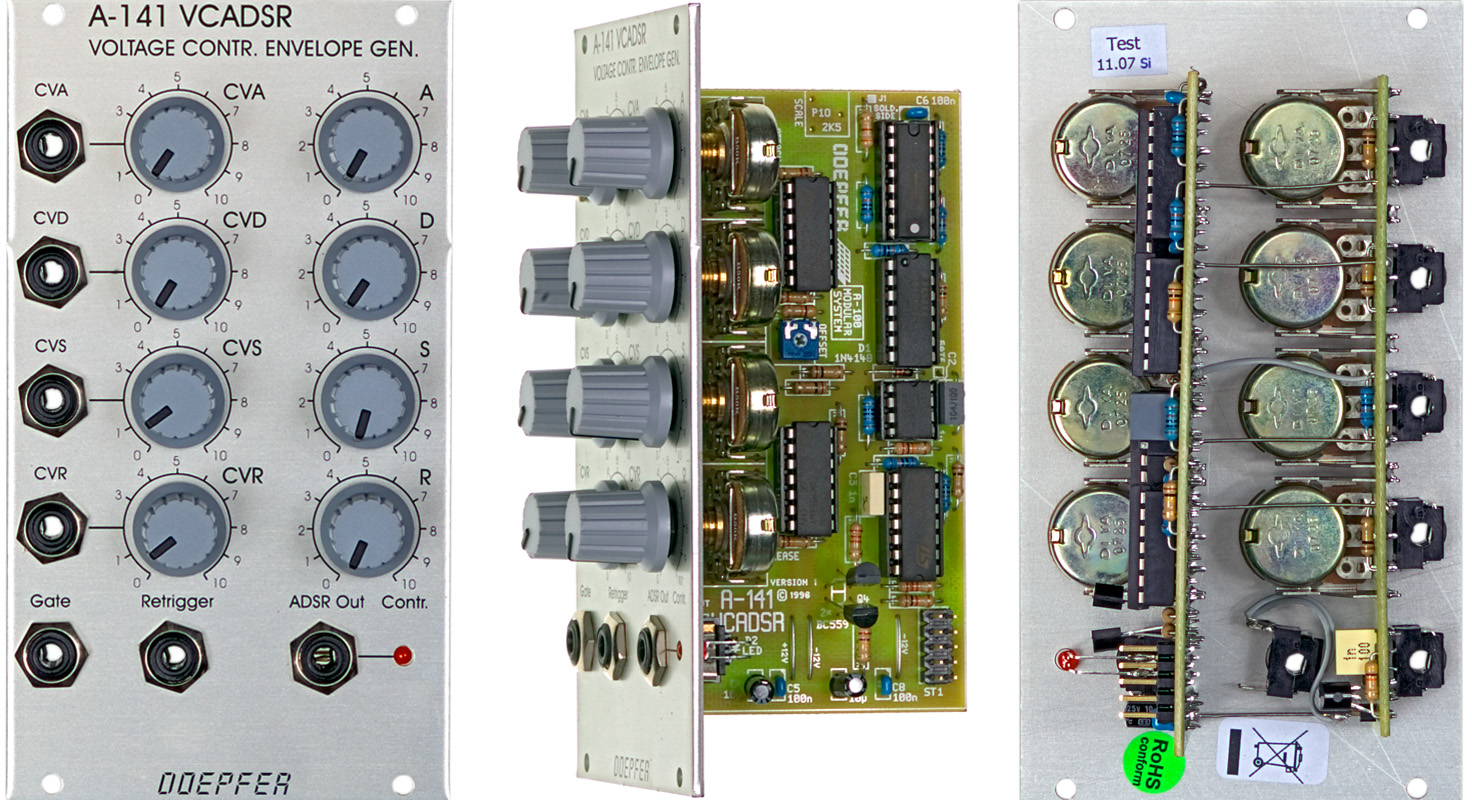

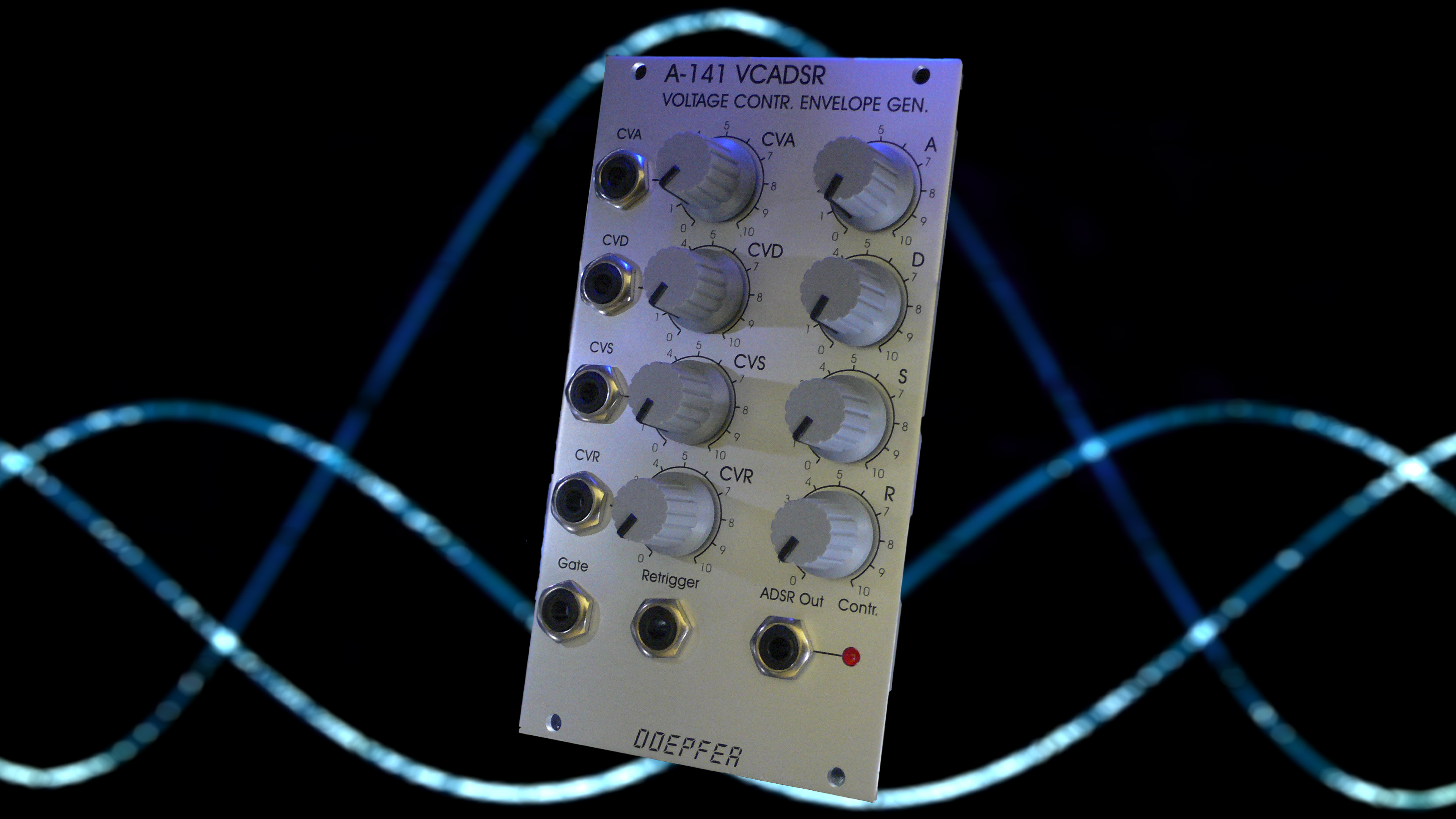

Module A-141 (VCADSR) is the voltage controlled version on an ADSR type envelope generator - a bit like the the voltage controlled version of the A-140. Whenever a gate signal is sensed at the VCADSR's gate input, an adjustable sequence of voltages is triggered - the envelope. You can then use these envelopes to modulate a VCO, VCF or VCA, or to control any other voltage controlled parameter of an A-100 module, e.g. Phasing A-125, Frequency-Shifting A-126, BBD-Delay A-188-1/A-188-2 or Waveshaping A-116/A-137.
The shape of the envelope is governed by four parameters: Attack, Decay, Sustain and
Release. On the A-141, these parameters can be controlled by hand, or by voltage control,
via the dedicated CV inputs (each with an attenuator). The time range for A, D and R is about 3 ms ... 20 s. The module can be modified upon request (changing a capacitor) for another time range, e.g. 300us... 2s. For more detailed information please look at the English user's guide: A141_man.pdf no longer available, replacement: A-141-2 |
||
|
|||
Breite/Width:
14 TE / 14 HP / 70.8 mm Tiefe/Depth: 60 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel) Strombedarf/Current: 30 mA |
|||
|
|||
nicht mehr lieferbar, Ersatztyp: A-141-2 no longer available, replacement: A-141-2 |
