PK88

USB/MIDI-Keyboard

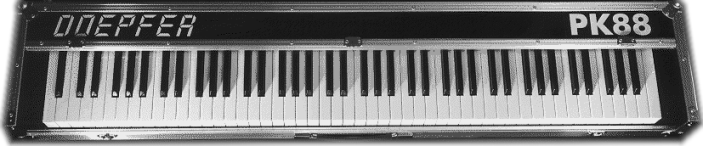

USB/MIDI Keyboard

PK88

Das PK88 wurde speziell auf die Bedürfnisse von "mobilen Pianisten" abgestimmt, die auf eine hochwertige und leicht zu transportierende Tastatur Wert legen, umfangreiche MIDI-Funktionen jedoch nicht benötigen. Das PK88 ist daher in erster Linie als Tastatur für Expander oder Software-Synthesizer gedacht - speziell für Klangerzeuger mit Piano-Sounds. Es verfügt über eine hochwertige 88-Tasten-Hammer-Tastatur. Als Gehäuse kommt ein rubustes und einfach zu transportierendes schwarzes Flightcase mit Tragegriff und abnehmbaren Deckel zum Einsatz, das insbesondere für Live-Auftritte durch den schnellen Auf- und Abbau besticht. PK88 was designed especially for the requirements of the "mobile pianist" who needs a high class and easy to carry keyboard but is able to dispense with extended MIDI features. First of all the PK88 was made to combine it with an expander or software synthesizer - especially for piano sound generatirs. The PK88 uses a 88 keys high quality keyboard with patented real hammer mechanics. The case used is a rugged and easy to carry black flightcase with handle and removable lid that shows its advantage especially during live events.

Die MIDI-Funktionen wurden bewusst auf das nötigste beschränkt: PK88 sendet Noten-Befehle auf MIDI-Kanal 1 mit Anschlagdynamik (Velocity). Die Anschlagdynamik wird in den in MIDI maximal möglichen 127 Stufen aufgelöst. Bei der Umsetzung des Anschlages in die MIDI-Velocity wurde Wert auf ein Verhalten gelegt, das dem eines Pianos - im Rahmen der durch MIDI vorgegebenen Einschränkungen - möglichst nahe kommt. An der Rückseite kann ein Doppelfußtaster für die Funktionen Haltepedal (Sustain, MIDI-Controller #64) und Dämpferpedal (Soft-Pedal, MIDI-Controller #67) angeschlossen werden. Der Doppelfußtaster ist im Lieferumfang des PK88 nicht enthalten und muß ggf. separat bestellt werden (z.B. VFP2). Ebenfalls an der Rückseite befinden sich die beiden MIDI-Ausgänge (parallel geschaltet) und der Eingang für das Netzteil.
Für weitergehende Keyboard-Funktionen stehen unsere anderen MIDI-Masterkeyboards LMK2+ oder LMK4+ zur Verfügung.

The MIDI features are limited to what the user of such a keyboard really needs: PK88 transmits MIDI note events with velocity on MIDI channel 1. The velocity resolution is 127 steps. We set a high value on the conversion of the mechanical impact to the MIDI velocity so that it is as close as possible to the bevaviour of a real piano - within the limited possibilities of MIDI. At the rear panel a double foot switch can be connected to obtain the piano features sustain (MIDI controller #64) and soft pedal (MIDI controller #67). E.g. our VFP2 can be used. At the rear panel you will find also the 2 MIDI outputs (parallel) and the power supply connector.
When you need more sophisticated keyboard features our MIDI keyboards  LMK2+ or LMK4+ are available.

Hier nochmals die wichtigsten Eigenschaften des PK88 im Überblick: Once again the most important features of PK88 at a glance:
hochwertige Hammermechanik-Tastatur TP/40GH mit freischwingenden Hämmern, 88 Tasten high quality keyboard TP/40GH with real piano style action and hammer mechanics, 88 keys
schwarzes Flightcase mit Tragegriff und abnehmbaren Deckel
(für den Transport per Post/ Paketdienst/ Bahn/ Luftfracht/ Spedition etc. ist das Gehäuse nicht geeignet, hierfür muss der Original-Karton verwendet werden)
black flightcase with handle and removable lid
(not suitable for shipment via mail/ parvel service/ UPS/ railway/ airfreight and so on, for that the original carton has to be used)
1 Midi-Out
1 USB-Anschluss, USB 2.0, Full Speed (nicht High Speed), am USB-Anschluss werden die gleichen Daten wie über den Midi-Ausgang gesendet)
1 Midi Out
1 USB connector, USB2.0, full speed (not high speed), the USB interface outputs the same data as the Midi output
Stereo-Klinkenbuchse zum Anschluss eines Doppelfußpedals (Öffnerkontakte erforderlich, z.B. Doepfer VFP2)

Stereo-Klinkenbuchse zum Anschluss eines Fußreglers (z.B. Doepfer FP5)

1/4" jack socket for connecting a double foot switch (switches closed at rest required, e.g. Doepfer VFP2)

1/4" jack socket for connecting a foot controller (e.g. Doepfer FP5)

Funktionen der Fußtaster und Fußregler:
  • rechter Fußtaster: Sustain, MIDI-Controller #64)
  • linker Fußtaster: Dämpferpedal (Soft-Pedal, MIDI-Controller #67)
  • Fußregler: Lautstärke (Volumen,  MIDI-Controller #7)
functions of the foot switches and foot controller:
  • right foot switch: sustain (MIDI controller #64)
  • left foot switch: soft pedal (MIDI controller #67)
  • foot controller: volume  (MIDI controller #7)
Abmessungen:
88 Tasten: ca. 135 x 26,5 x 10,5 cm ohne Kugelecken
88 Tasten: ca. 137 x 28 x 12 cm mit Kugelecken

Die Angaben ohne Kugelecken sind nur nur reine Maßangaben. Die Gehäuse sind immer mit Kugelecken ausgestattet. Es gibt keine Gehäuse ohne Kugelecken !
Measures:
88 keys: about 135 x 26.5 x 10.5 cm without ball corners
88 keys: about 137 x 28 x 12 cm with ball corners

The dimensions without ball corners are only for reference. The cases are always equipped with ball corners ! Cases without ball corners are not available.
Gewicht: ca. 20 kg Weight: about 20 kg
Stromversorgung über externes Steckernetzteil 230V, mit Eurostecker (im Lieferumfang enthalten, Netzteile für andere Netzstecker oder Netzspannungen müssen vom Benutzer im jeweiligen Land erworben werden, 7...12V/300mA DC erforderlich), Stromversorgung auch über USB möglich (in diesem Fall ist kein Steckernetzteil mehr erforderlich) external AC adapter for power supply (AC adapter for 230V AC and European type of mains connector is included, adapters for other voltages or other mains connector types has to be purchased by the customer in his country, 7...12V/300mA DC required), power supply via USB possible (the supply adapter is no longer required if the PK88 is connected to a USB host)
Preis: Euro 1145,00

Preis ohne Gehäuse: Euro 960,00

Die Preise beinhalten ein Steckernetzteil für 230V mit Eurostecker, jedoch nicht den optional anschließbaren Doppelfußtaster und Fußregler.
Bitte bestellen Sie diesen bei Bedarf zusätzlich (siehe Zubehör).
Price: Euro 1145.00

Price without housing: Euro 960.00

The prices include a 230V power supply with European plug type. The prices do not include the optional double foot switch and foot controller. Please order separately if required (see Accessories).
The price in US$ depends upon the exchange rate between Euro and US$ at the payment day.

Die PK88-Bedienungsanleitung ist als pdf-Datei auf unserer Web-Site verfügbar: PK88_USB_Anleitung.pdf

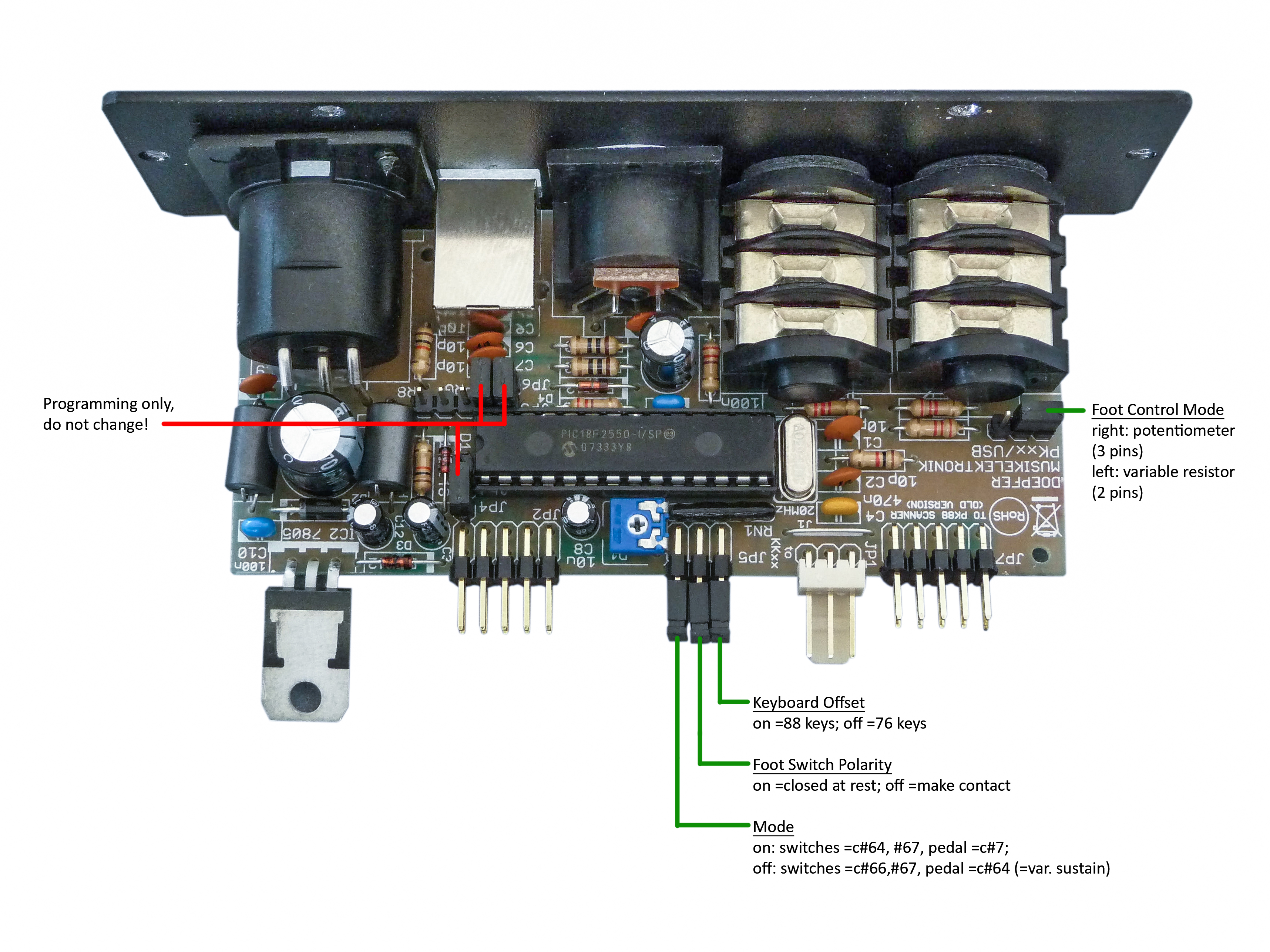

Die Lage und Funktion der  Steckbrücken ist hier beschrieben: PK88_USB_jumper_settings.jpg

The PK88 user's manual is available as pdf file on our web site: PK88_USB_Manual.pdf

The position and function of the jumpers is described in this document: PK88_USB_jumper_settings.jpg


Auf Anfrage ist das PK88 auch ohne Gehäuse lieferbar:

Upon request the PK88 is available also without case:

Wichtige Hinweise:

Bei den Einbauversionen unserer Master-Keyboards PK88/LMK2+/LMK4+ ohne Gehäuse handelt es sich um sogenannte OEM Produkte! Diese Produkte dürfen nur von Fachleuten installiert werden, die Erfahrung im Umgang mit empfindlichen mechanischen und elektronischen Komponenten haben und über die erforderlichen Hilfmittel zur Inbetriebnahme und ggf. Fehlersuche verfügen. Wir weisen ausdrücklich darauf hin, dass eine falsche Handhabung der Komponenten zu schweren Schäden führen kann, die nicht unter die Gerätegarantie fallen.
Eine Rücknahme oder Garantiereparatur fehlerhafter Komponenten ist nur möglich, wenn diese sich im Originalzustand befinden. Komponenten, an denen vom Kunden gelötet wurde oder die mechanisch bearbeitet/verändert wurden, sind von der Rückgabe bzw. Garantiereparatur ausgeschlossen.
Bei einer Rücksendung der Tastatur ist zwingend die Spezialverpackung (Produktverpackung + zusätzliche gepolsterte Transportverpackung) zu verwenden, da es andernfalls mit hoher Wahrscheinlichkeit zu Transportschäden kommt, die nicht von der Gerätegarantie abgedeckt werden.

Wir empfehlen dringend die folgenden technischen Dokumente vor dem Erwerb der Einbauversion des PK88 zu lesen:

Important notes:

The installation versions of our master keyboards PK88/LMK2+/LMK4+ without housing are so-called OEM products! These products may only be installed by specialists who are experienced in handling sensitive mechanical and electronic components and who have the necessary tools for commissioning and, if necessary, troubleshooting. We expressly point out that incorrect handling of the components can lead to serious damage that is not covered by the device warranty.
A return or warranty repair of defective components is only possible if they are in their original condition. Components that have been soldered to by the customer or that have been mechanically processed/modified are excluded from return or warranty repair.
When returning the keyboard, it is mandatory to use the special packaging (product packaging + additional padded transport packaging), otherwise there is a high probability of transport damage that is not covered by the device warranty.
We strongly recommend reading the following technical documents before purchasing the built-in version of the PK88/LMK2+/LMK4+.

We strictly recommend to read these technical documents before you order the OEM version of the PK88:

Beispiel für eine Spielkonsole mit eingebautem PK88 ohne Flightcase
(Eigenbau eines unserer Kunden)



Example of a console based on PK88 without flight case
(DIY project by one of our customers):




Anmerkungen zu der Geschichte des PK88:

  • Seit Anfang 2009 ist das PK88 zusätzlich mit einem USB-Interface ausgestattet. Die Vorgänger-Version hatte 2 parallele Midi-Ausgänge und war nicht mit einem Fußregler-Anschluss ausgestattet. Die Anleitung zu der alten Version finden Sie hier: Alte Version (ohne USB)

  • Die Masterkeyboards PK88, LMK2+ und LMK4+ wurden Anfang 2011 von der Tastatur TP/40 auf eine graduierte Hammer-Tastatur (88TP/40GH) umgestellt.

  • Die bis Mitte 2012 produzierte 76-Tasten-Version des PK88 wird nicht mehr hergestellt.



PK88 history notes:

  • Since 2009 the PK88 is equipped with an additional USB interface. The former version was equipped with two parallel Midi outputs. The second jack socket for the foot controller was not available. The user's manual for the old version is still avaialable: Old version (without USB)

  • Our master keyboards  PK88, LMK2+ and LMK4+ are equipped with the new graded hammer action keybed 88TP/40GH.

  • The 76 key version of the PK88 has been manufactured until middle of 2012 and is no longer available
